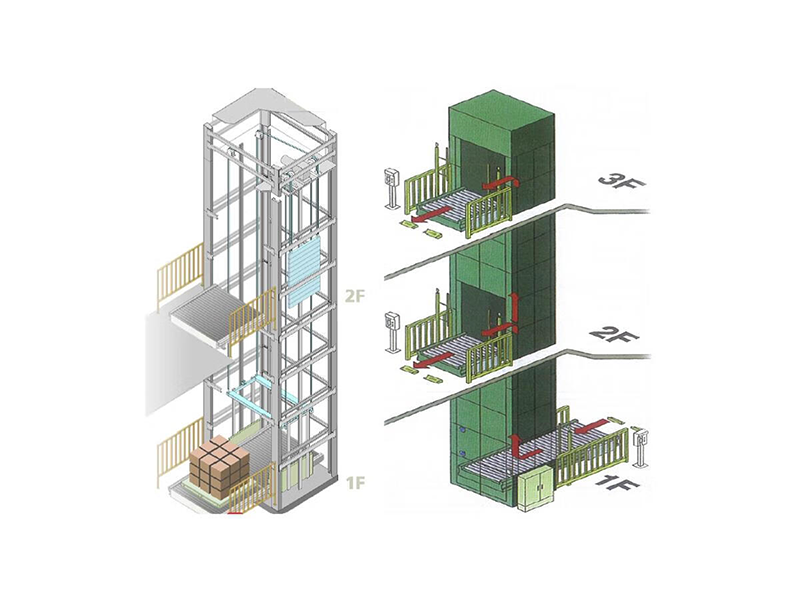

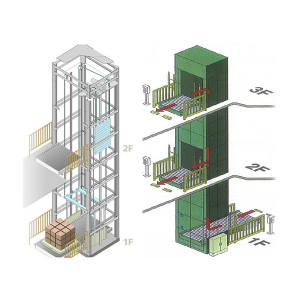

Vertical reciprocating drum hoist
The vertical reciprocating roller elevator is driven by steel wire rope/chains to move the car. The car is equipped with a transmission mechanism, which facilitates the automatic entry of goods into the car. The motor is controlled by variable frequency speed regulation to lift the car to move up and down reciprocally. After being transported to the designated floor, the goods are automatically discharged from the car. There are various specifications and can be customized according to user requirements.
Equipment Technical Specification sheet
| Load capacity | ≤400000kg |
| Lifting speed | 6-60m/min(Customizable) |
| Conveying speed | 0.2m/s |
| Conveying direction | Type Z/Type C/Type E, etc（Customizable） |
| Control mode | PLC |
| Transmission mode | The lifting method is steel wire rope/chain, and the conveying method is roller |
| Operation mode | Push-button type |
| Power supply | 380V 50Hz Three-phase five-wire system |

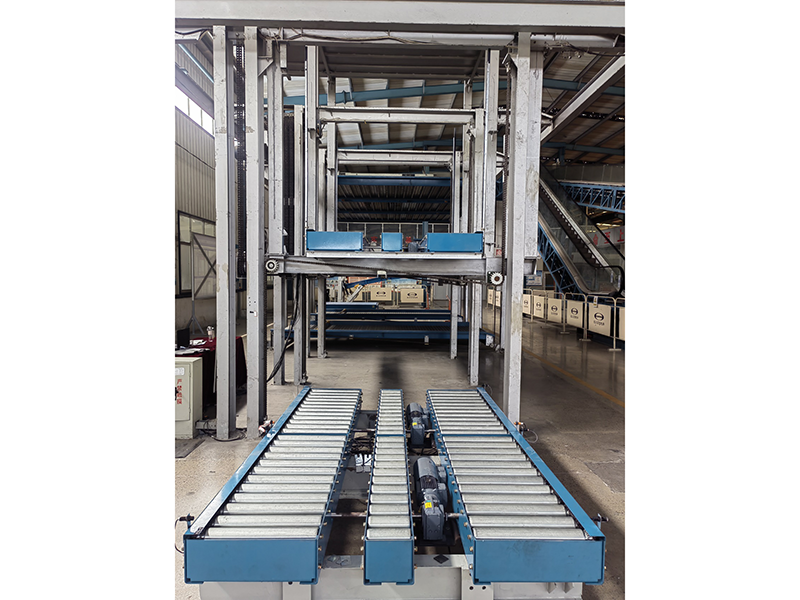

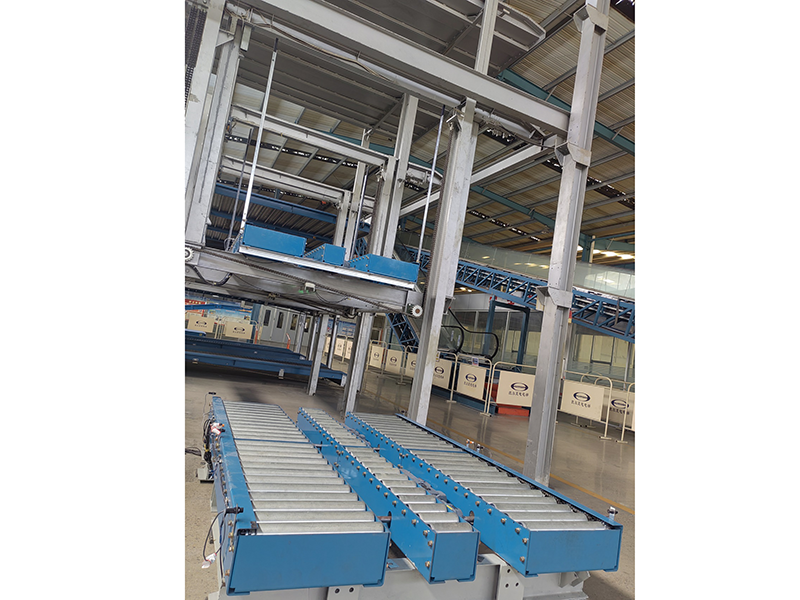

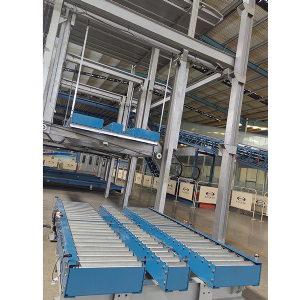

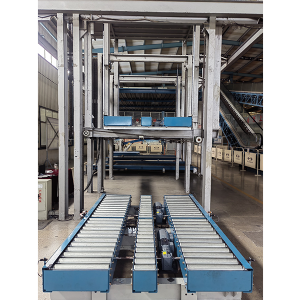

Vertical reciprocating drum hoist
It is equipped with a human-machine operation interface, enabling automated operation, and is also fitted with multiple safety devices to ensure the safety of operators and goods.
2. The process is automated for control, thereby enhancing production efficiency.
3. The goods can enter and exit the elevator from all directions, providing flexible layout.
4. The products can be designed and manufactured according to customers' demands.
It can be used in environments such as warehouses, workshops, and logistics centers where vertical transportation of goods between multiple floors is required.
 |  |
